| Celadon Inc. |
|
|
| RCV-5000 IR to RS-232 Output Table |
|
| Device: Lumagen Vision HDP Video Scaler |
|
|
|
| Infrared Remote Control: Celadon, SC-33A |
|
| Infrared Code Format: NEC - Device ID: 6E91 |
|
| Infrared Receiver: Celadon RCV-5000 Infrared to RS-232 Receiver |
| RCV-5000 Data File: lumagen2_r.hex |
|
| Data: 9600 baud, 8, N, 1 (ASCII Output) |
|
| Standard Transmit and Receive Pinout |
|
|
|
|
|
|
|
| Lumagen HDP Command |

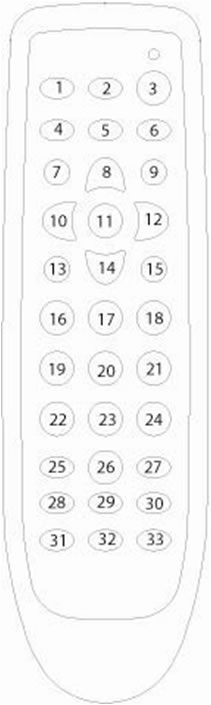

SC-33A Key Number |
RS-232 Output |
| MENU |
1 |
M |
| ON |
2 |
% |
| STBY |
3 |
$ |
| EXIT |
4 |
x |
| Freeze-frame. |
5 |
z |
| NLS 4:3 |
6 |
N |
| Select MEMA |
7 |
a |
| Up arrow |
8 |
^ |
| Select MEMB |
9 |
b |
| Left arrow |
10 |
< |
| OK |
11 |
<cr> |
| Right arrow |
12 |
> |
| Select MEMC |
13 |
c |
| Down arrow |
14 |
v |
| Select MEMD |
15 |
d |
| Enter the digit 1 |
16 |
1 |
| Enter the digit 2 |
17 |
2 |
| Enter the digit 3 |
18 |
3 |
| Enter the digit 4 |
19 |
4 |
| Enter the digit 5 |
20 |
5 |
| Enter the digit 6 |
21 |
6 |
| Enter the digit 7 |
22 |
7 |
| Enter the digit 8 |
23 |
8 |
| Enter the digit 9 |
24 |
9 |
| Set Vertical Rate to 59.94 |
25 |
~5994 |
| Enter the digit 0 |
26 |
0 |
| Set Vertical Rate to 50 |
27 |
~5000 |
| Set Vertical Rate to 47.95 |
28 |
~4795 |
| Set Vertical rate to 24 |
29 |
~2400 |
| Set Vertical Rate to 23.98 |
30 |
~2398 |
| Input is 4:3 format. |
31 |
n |
| Input is 4:3 letter-box format. |
32 |
l |
| Enhanced for 16:9. |
33 |
w |
|
|
|
|
|
|
